ZCZ (ZCZP) SERIES

ZCZ (ZCZP) SERIES 2/2-WAY SOLENOID VALVE

ZCZ Series 2-2-Way Solenoid Valve • Normally Closed

Technical Parameters

  • Max Pressure: 1.6MPa <1.0MPa>

  • Operating Differential Pressure: 0.05~1.6MPa ≥ Φ 65

                                                                       0.1~1.6MPa <ZCZP Series 0.04~1.0MPa>

  • Media: Liquid, Gas, Steam, Oil<20CST

  • Media Temperature: ≤ 180°C < 200°C

  • Voltage: AC: 380V 220V 36V/50Hz  DC: 24V 110V 220V

  • Coil Class: Class H

  • Power Supply Tolerance: -15% ~ +10%

  • Power: Φ15~Φ50  24W  Φ65~Φ150  50W

  • Response Time: Φ15~50  Open ≤ 2s  Closed ≤3s

                                       Φ65~150 Open ≤ 3s  Closed ≤5s

  • Mounting Position: Flow as arrow, solenoid vertical and upright direction

ZCZ (ZCZP) SERIES

ZCZ (ZCZP) SERIES 2/2-WAY SOLENOID VALVE • NORMALLY  CLOSED • BRASS

ZCZ 2/2-Way • Brass • Normally Closed

1/2"~2" Normally Closed



Select your product:

Thanks for ordering!

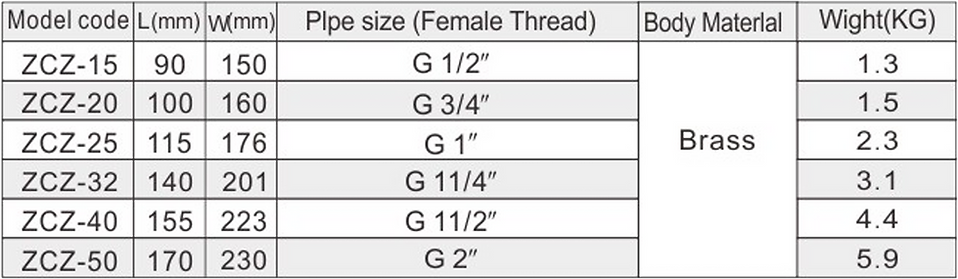

Parameters

Parameters

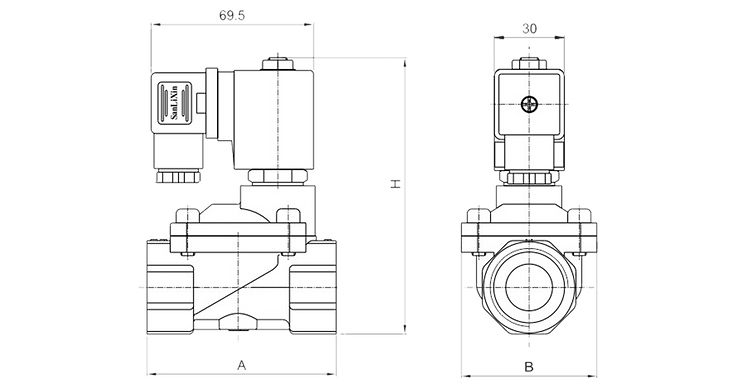

External Dimensions Chart

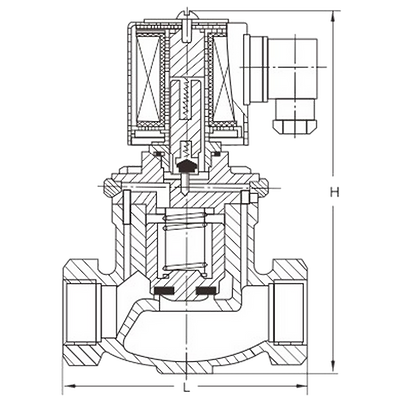

Dimension Chart

ZCZ (ZCZP) SERIES

ZCZ (ZCZP) 2/2-WAY SOLENOID VALVE

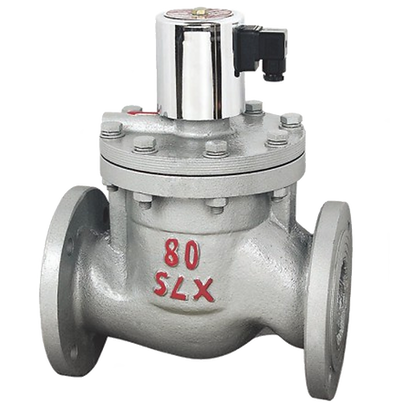

ZCZ Series 2-2-Way Solenoid Valve • Normally Closed• Flange

ZCZ (ZCZP) SERIES

ZCZ (ZCZP) 2/2-WAY SOLENOID VALVE • NORMALLY  CLOSED • FLANGE

Technical Parameters

​​

  • Operating Differential Pressure: ≤ Φ65; 0.5~16bar;  ≥ Φ65: 1~16bar

                                                                       (ZCZP Series:0.4~1.0MPa)

  • Fluid Media: Liquid, Air, Steam, and Light Oil<20CST

  • Voltage: AC: 380V 220V 36V/50Hz  DC: 24V 110V 220V

  • Coil Class: Class H

  • Voltage tolerance: -15% + 10%

  • Power consumption: Φ20~Φ50  24W  Φ65~Φ150  50W

  • Response Time: Φ20~Φ50  Open ≤ 2s  Closed ≤3s

                                       Φ65~Φ150 Open ≤ 3s  Closed ≤5s

  • Mounting Position: Flow as arrow, solenoid vertical and upright direction

ZCZ 2/2-Way • Brass /Iron • Normally Closed

Flange Normally Closed



Select your product:

Thanks for ordering!

Specifications

Parameters

External Dimensions Chart

Dimensions Chart

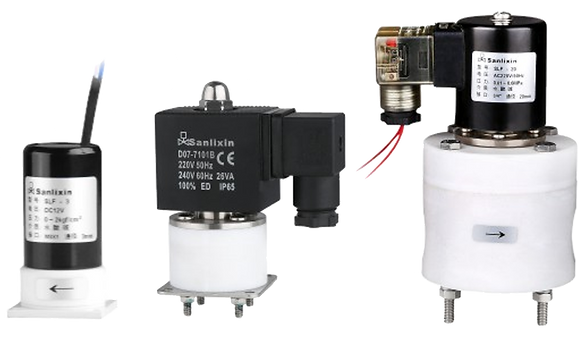

SLF PTFE SERIES

SLF PTFE SOLENOID VALVE

SLF PTFE Solenoid Valve

Specification and Features

  • 2 Way Solenoid Valve

  • Body Material: PTFE

  • Media: Strong Acid, Strong Base (Alkali)

  • Mounting: Flow as the arrow, Life is best for growth level installation

  • No leakage

SLF PTFE SERIES

SLF PTFE SOLENOID VALVE

SLF PTFE Solenoid Valve

M8~1"



Select your product:

Thanks for ordering!

Parameters

Parameters

External Dimensions Chart

Construction, External

External Dimensions Chart

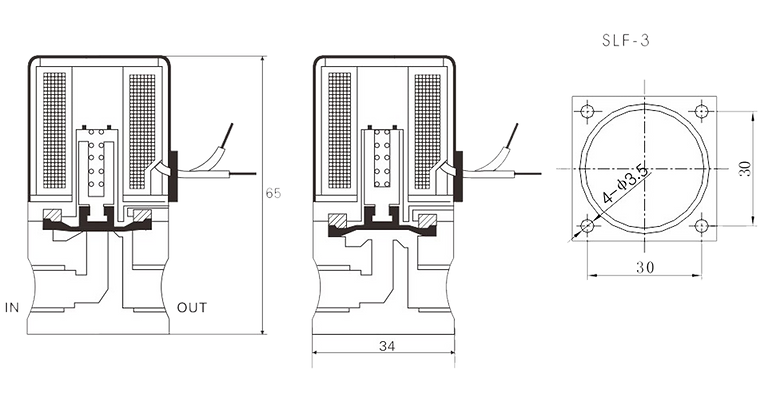

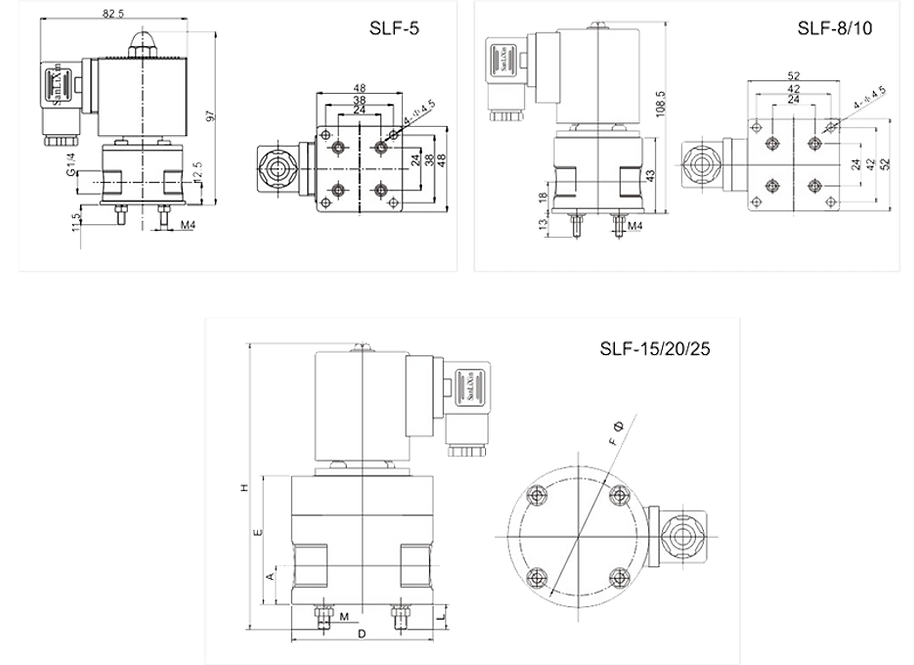

Construction, External_2

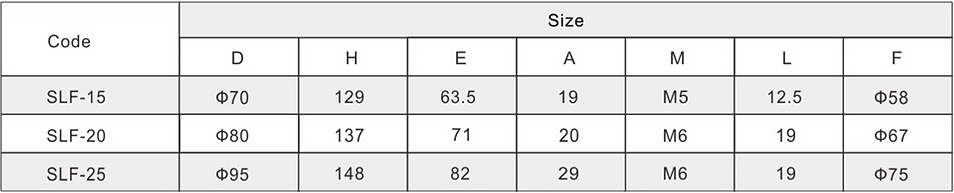

Parameters_2

SLUF UPVC SERIES

SLUF UPVC SOLENOID VALVE

SLUF UPVC Solenoid Valve

Specification and Features

  • Body Material: UPVC

  • Seal Material: AFLAS

  • Isolation structure design, keep the medium separate with the valve body and seals

  • Piston constructure, longer lifetime

  • Soft seal design, no leakage

SLUF UPVC SERIES

SLUF UPVC SOLENOID VALVE

SLUF UPVC Solenoid Valve

G1/2"~G1"



Select your product:

Thanks for ordering!

Parameters

Parameters

External Dimensions Chart

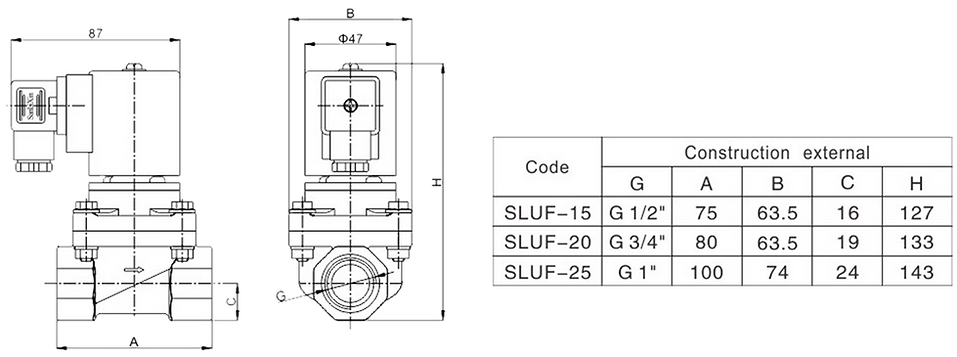

Construction, External

SLV Series Order Form

SLV Series  Solenoid Valve

Position Description

Valve Series

Valve
Series

Mode of
Operation

Coil
Type

Coil
Class

Voltage

Seal
Material

Body
Material

Pipe
Size

Orifice
(mm)

Options

1

2

3

4

5

6

7

8

9

10

Mode of Operation
Coil Class
Coil Type
Voltage
Seal Material
Pipe Size
Orifice (mm)
Body Material
Options
Coil Type

Thanks! We’ll send you a price quote shortly.

SLDF SERIES

SLDF 2/2-WAY SERIES UNDERWATER SOLENOID VALVE

SLDF 2_2-Way Series Underwater Solenoid Valve

Description

SLDF series is a direct acting solenoid valve which utilizes pressure differential to open the valve. They feature diaphragm construction, and together with rapid on-off, stabile capability, easy use, and long-life. This valve has a strong dirty-tight, can be used for a long time in rivers, lakes, seas, and all kinds of man-made water areas.

SLDF SERIES

SLDF 2/2-WAY SERIES UNDERWATER SOLENOID VALVE

SLDF Underwater Solenoid Valve

G1/2"~G2"



Select your product:

Thanks for ordering!

Parameters

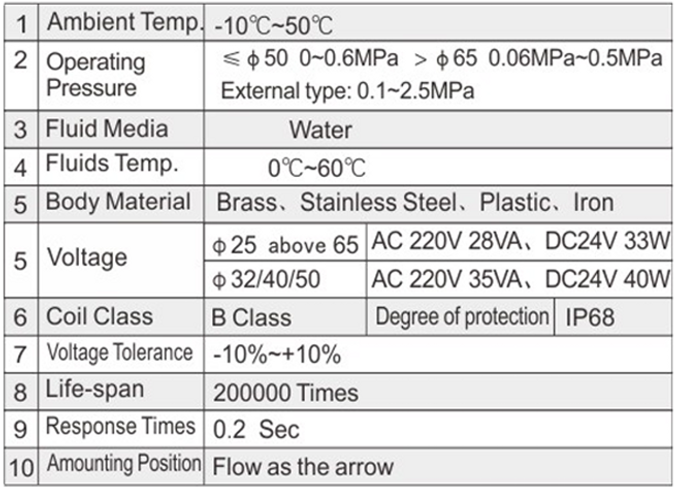

Technical Parameter

External Dimensions Chart

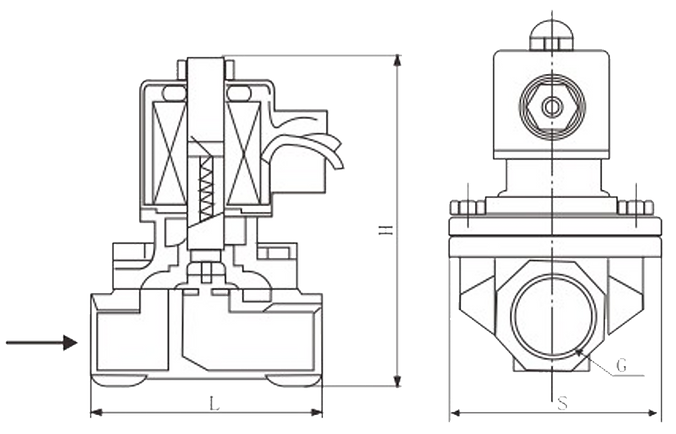

Construction, External

Specification

Specifications

SLDF SERIES

SLDF 2/2-WAY SERIES UNDERWATER SOLENOID VALVE • FLANGE

SLDF 2_2-Way Series Underwater Solenoid Valve • Flange

SLDF Underwater Solenoid Valve

Flange: DN65~150

​

Select your product:

Thanks for ordering!

External Dimensions Chart

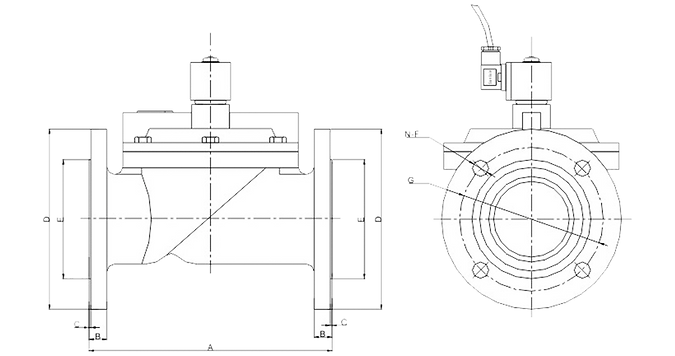

Construction, External_

Specification

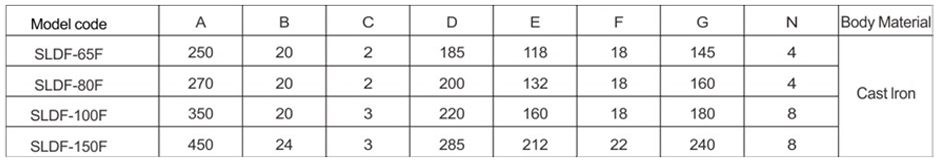

Specifications

SLDF Underwater Solenoid Valve

Flange: DN65~150

​

Select your product:

Thanks for ordering!

SLDF 2_2-Way Series Underwater Solenoid Valve • Flange2

External Dimensions Chart

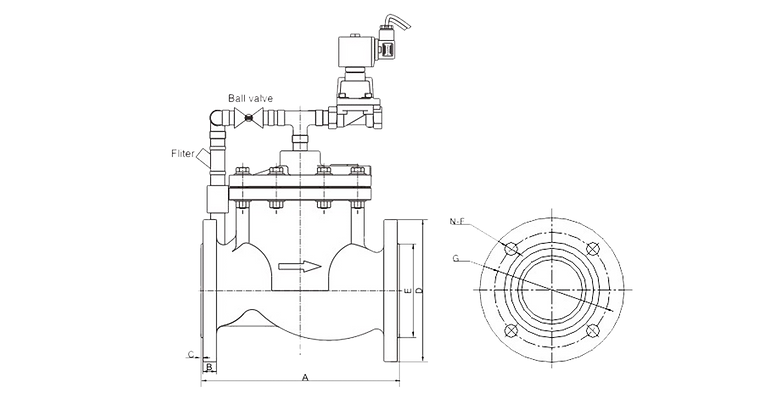

Construction, External•2

Specification

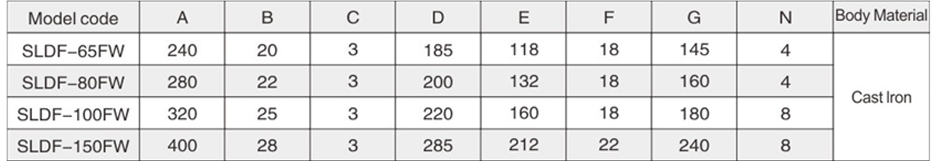

Specifications•2

ZCM SERIES

ZCM ZERO PRESSURE DIFFERENTIAL GAS SOLENOID VALVE

ZCM Zero Pressure Differential Gas Solenoid Valve

Using

This series valve provide on-off control coal gas, natural gas, and other combustion fluid media, they also can control other low pressure fluids.

Characteristics

  • Special construction, low pressure

  • They are capable of operating at zero pressure differential, and have large flow

  • Use of high quality seals, no leaking

  • Best option is solenoid vertical and upright direction, flow as the arrow

  • Explosion-proof coil and be fitted (for orifice under 25MM only)

  • Explosion-proof certification NO.:XK06-014-01861 Refer to standard: GB3836. 9-2006

  • Ex-proof 3C certificate number: 2020312307000034

ZCM SERIES

ZCM ZERO PRESSURE DIFFERENTIAL GAS SOLENOID VALVE

ZCM ZERO PRESS Solenoid Valve

1/8"~2"



Select your product:

Thanks for ordering!

Parameters

Parameters

External Dimensions Chart

Construction, External

Characteristics

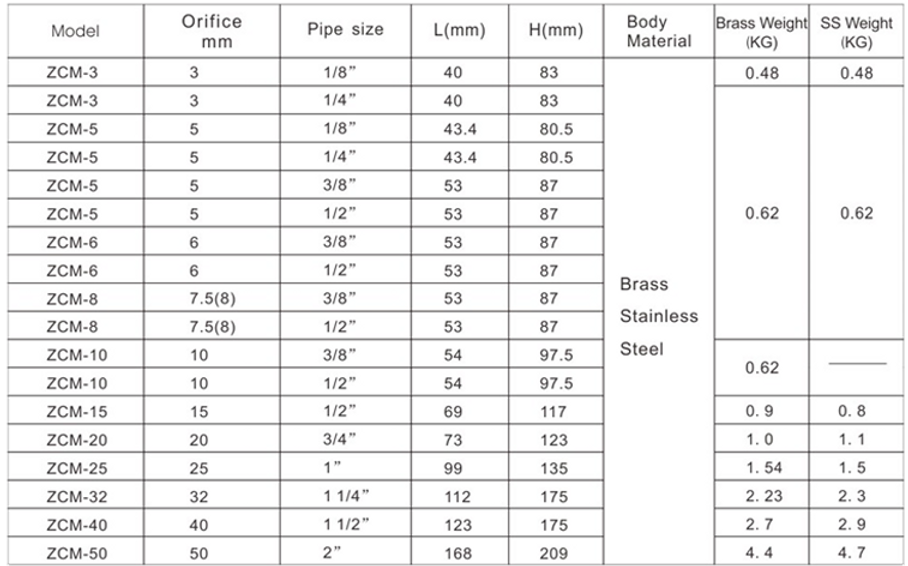

Characteristics List

ZCM SERIES

ZCM ZERO PRESSURE DIFFERENTIAL GAS SOLENOID VALVE • FLANGE

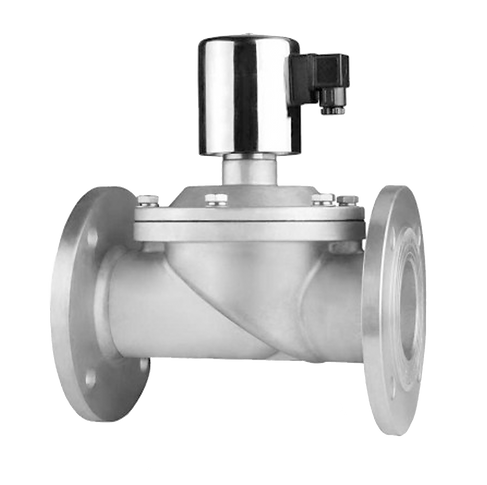

ZCM Zero Pressure Differential Gas Solenoid Valve • Flange

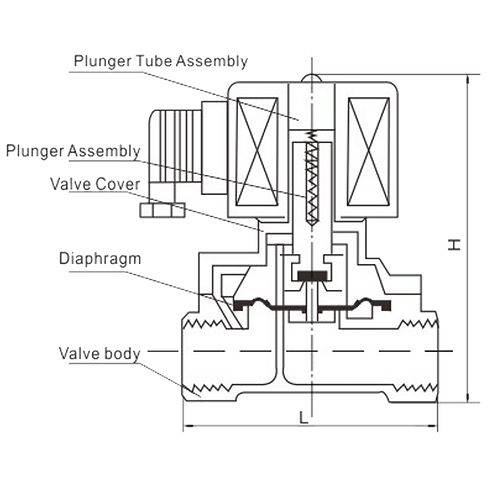

External Dimension 1

ZCM ZERO PRESS Solenoid Valve • Flange

1/8"~2"



Select your product:

Thanks for ordering!

External Dimensions Chart

External Dimension 2

Parameters

Parameters

SLPM Series Order Form

SLPM Series  Solenoid Valve

Position Description

Valve Series

Valve
Series

Mode of
Operation

Coil
Type

Coil
Class

Voltage

Seal
Material

Body
Material

Pipe
Size

Orifice
(mm)

Options

1

2

3

4

5

6

7

8

9

10

Mode of Operation
Coil Class
Coil Type
Voltage
Seal Material
Pipe Size
Orifice (mm)
Body Material
Options

Thanks! We’ll send you a price quote shortly.

SLPM SERIES

SLPM 2/2-WAY LATCHING SOLENOID VALVE

Characteristics

  • This series valve is famous for sensitive reaction and high pressure

  • Usually being used to circuit control board connection, it is good for energy saving

  • Widely used to IC card gas combustion meter, water saving irrigation, water meter and various automatism sanitation

  • The core of the valve can be pulled and stretched to be the good shape, with good strictness, credibility, sensitive reaction and long life span

  • Voltage: DC6V/DC12V/DC24V

  • Seals: NBR, VITON, EPDM

  • Valve Body: Brass / SS304

  • Pulse: Width: 50~80ms

Using Condition

Fluid Media: Water, Gas (Non Corrosive

Fluid Temp.: ≤60°C for use in an area which is relative temp. can not over than 85%

SLPM 2/2-Way Latching Solenoid Valve • Brass
SLPM 2/2-Way Latching Solenoid Valve • SS316

External Dimensions Chart

External Dimension
